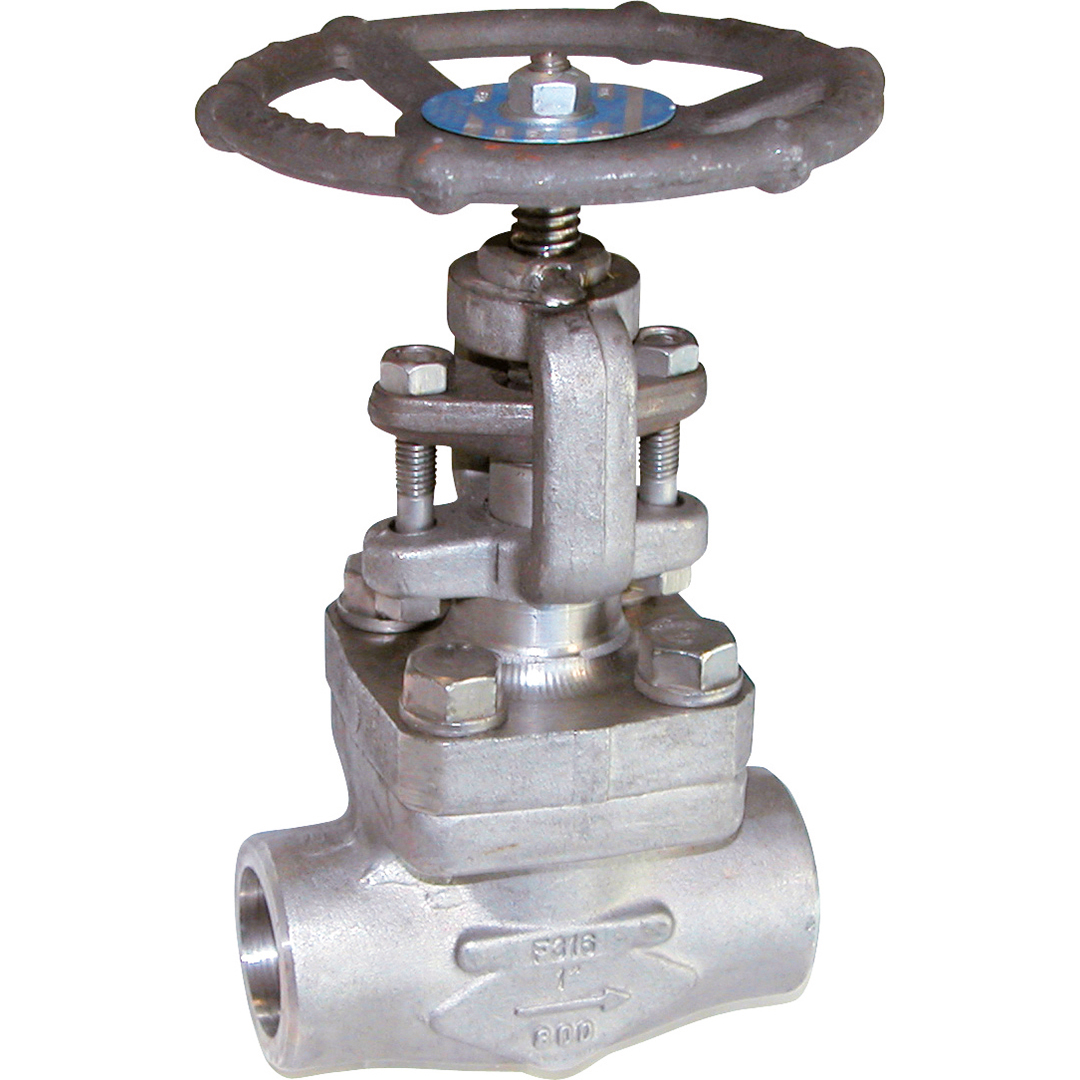

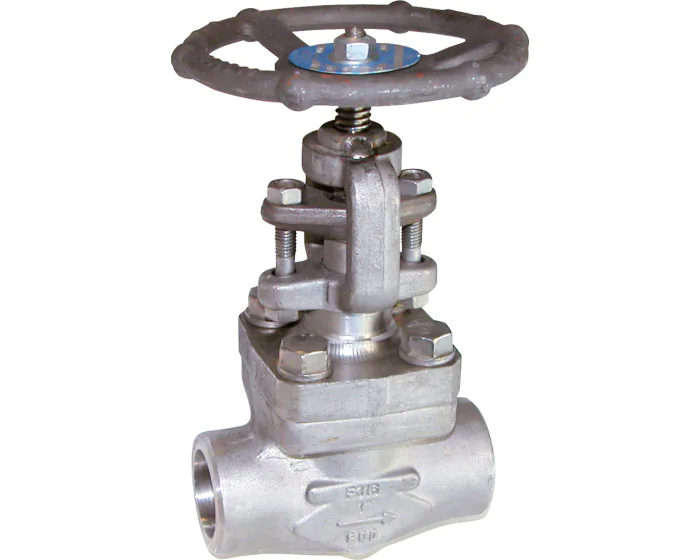

The globe valve series 452 in forged stainless steel A182 F316, welding SW, Class 800, TRIM 10, standard bore with bolted bonnet, ATEX compliant for petroleum, steam, petrochemical and chemical industries.
| Specification | Value |
|---|---|
| DN inches NPS | 3/8'' |
| Option certificate 3.1 | Yes |
| Bonnet material | Stainless steel ASTM A182 F316 |
| Construction standard | ISO 15761 - API 602 V8 |
| CE risk category | III Module H |
| TRIM | TRIM 10 |
| Brand | OMB |
| Tightness test standard | API 598 |
| Bonnet | Bolted |
| Steam | Yes |
| Opening device | Handwheel |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel ASTM A479 type 316 |
| ATEX compatible | Yes |
| DN | DN10 - 3/8'' |
| Face to Face (mm) | 80.0 |
| Sealing | Metal / Metal |
| Fluid | Hydrocarbons. gas |
| Kv (m³/h) | 1.2 |
| Body material | Stainless steel F316/F316L |
| Bore | Standard |
| Packing gland | Yes |
| PS (bar) | 132 |
| Connections | Welding SW |
| Seats | Stainless steel ASTM A479 type 316 |
| TS max (°C) | 538 |
| TS min (°C) | -49 |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 2 years |
| Type of stem | Rising |
| CE | Yes |
| Plug material | Stainless steel ASTM A479 F316 |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Welding SW Stainless steel F316/F316L Standard DN10 - 3/8'' | 452010 | S1007536 |
€155.04
(excl. btw)
|
add to cart |
| Welding SW Stainless steel F316/F316L Standard DN15 - 1/2'' | 452015 | S1007537 |
€170.53
(excl. btw)
|
add to cart |
| Welding SW Stainless steel F316/F316L Standard DN20 - 3/4'' | 452020 | S1007538 |
€173.31
(excl. btw)
|
add to cart |
| Welding SW Stainless steel F316/F316L Standard DN25 - 1'' | 452025 | S1007539 |
€254.94
(excl. btw)
|
add to cart |
| Welding SW Stainless steel F316/F316L Standard DN40 - 1''1/2 | 452040 | S1007540 |
€590.19
(excl. btw)
|
add to cart |
| Welding SW Stainless steel F316/F316L Standard DN50 - 2'' | 452050 | S1007541 |
€778.79
(excl. btw)
|
add to cart |
